Model 30 Rifle Parts

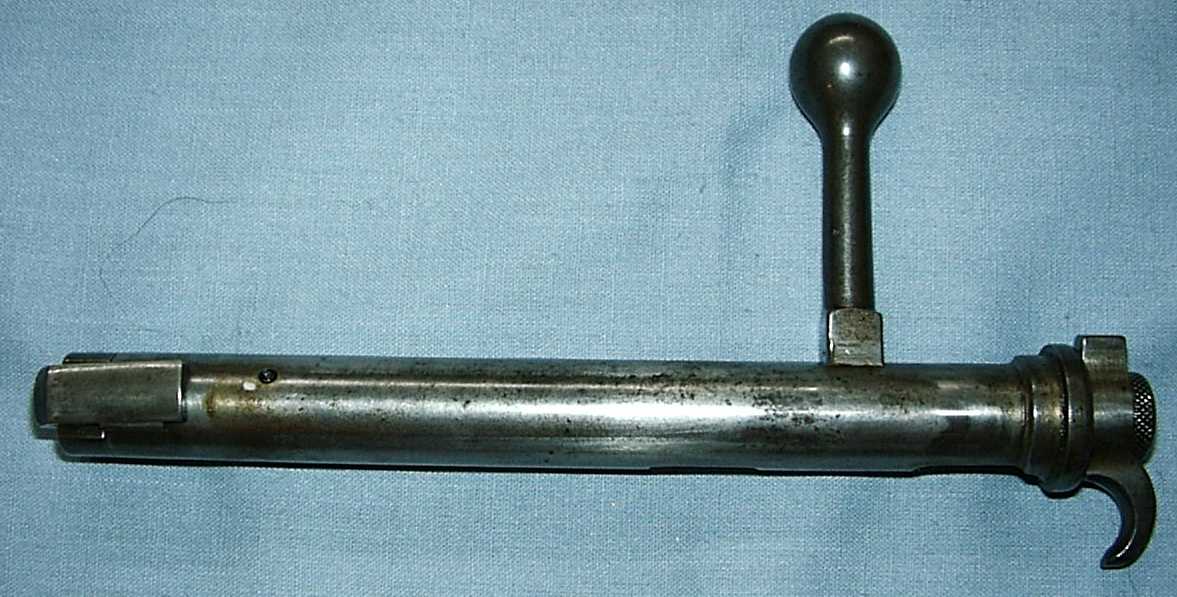

Picture number M30040 (picture courtesy of Shannon Zeigler) View of the complete Model 30 bolt. The Model 30 bolt had a separate bolt head which held both the extractor and ejector (visible at the front of the bolt in the picture).

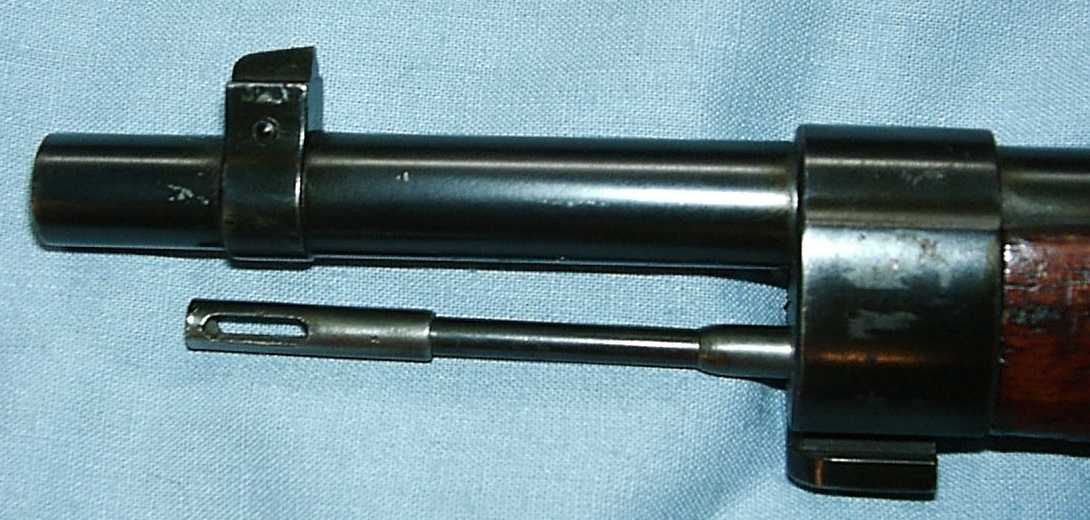

Picture number M30420 (picture courtesy of Shannon Zeigler) View of front sight, front band, and top of cleaning rod. The front sight has no protecting guards (or "ears") and the base is pinned to the barrel.

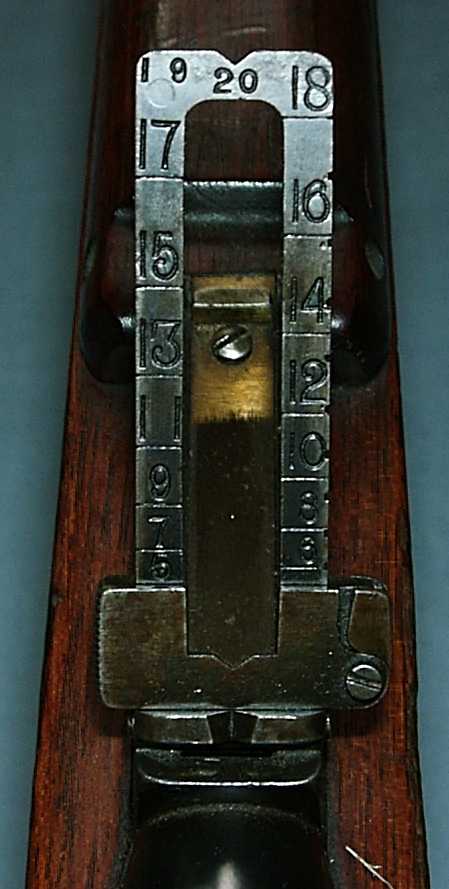

Picture number M30430 (picture courtesy of Shannon Zeigler) Rear sight maximum sight setting was for 2000 (meters?) as indicated by 20 just below the v-notch at the top of sight ladder.
